# Example: MATLAB

## MATLAB Online Course

Learn the basics of MATLAB® through this introductory tutorial on commonly used features and workflows.

{% embed url="<https://matlabacademy.mathworks.com/details/matlab-onramp/gettingstarted>" %}

List of other Self-Paced Online Courses:

{% embed url="<https://matlabacademy.mathworks.com/?page=1&sort=featured>" %}

## MATLAB Examples of Numerical Programming

by Y.-K. Kim

Example codes using MATLAB built-in functions

[You can download matlab code](https://github.com/ykkimhgu/NumericalProg-student/blob/main/tutorial/NP%20MATLAB%20Example%20codes.mlx)

### Non-linear solver

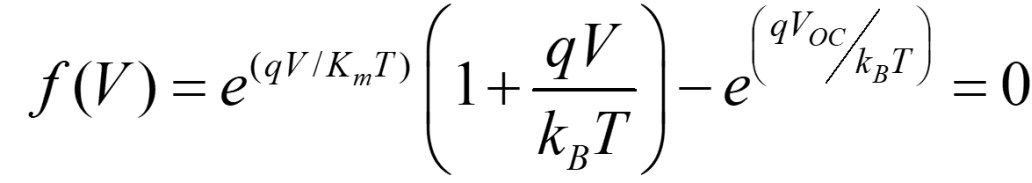

First, define a non-linear function in the form of f(v)=0.

Then, use a non-linear equation solver fzero (). ![image-20230818144953414](https://github.com/ykkimhgu/course-doc/assets/38373000/d6167efa-b2b9-4098-86be-68b2cc108cb9)

​

<figure><img src="/files/LC40TKoOpqhPHDmKGlYk" alt="" width="375"><figcaption></figcaption></figure>

```matlab
v0=0.5;
v=fzero(@fnSolarCell,v0)

function y=fnSolarCell(x)
    q=1.6022E-19; k=1.3806E-23; Voc=0.5; T=297;
    qkT=q/(k*T);
    y=exp(qkT*x)*(1+qkT*x)-exp(qkT*Voc);
end

```

### Integration

#### Integrating discrete dataset: trapz()

Trapezoidal Method

```matlab
% Discrete dataset
x=[0 5 10 15 20 25 30 35 40 45 50 55 60]
y=[0 3 8 20 33 42 40 48 60 12 8 4 3]
plot(x,y)

% Matlab function
I_matlab = trapz(x,y);
```

#### Integrating a Function: integral(fun, a,b)

The area of the shaded region shown in the figure can be calculated by:

![image](https://github.com/ykkimhgu/course-doc/assets/38373000/4d64fc21-25cd-4346-aebc-10f8060612cd)

<figure><img src="/files/pOsxzniT3zWwj69V3ZnF" alt=""><figcaption></figcaption></figure>

```matlab
a=-3; b=3; N=8;
h=(b-a)/N;
x=a:h:b;
fun=@(x) (1-x.^2).^0.5;
% Matlab function
I_matlab = integral(fun,a,b);
```

### Differentiation

#### Differentiating discrete dataset

```matlab
% Differentiation from discrete data
X = [1 1 2 3 5 8 13 21];
Y = diff(X)

% Differentiation from discrete data
h = 0.001;       % step size
X = -pi:h:pi;    % domain
f = sin(X);      % range
Y = diff(f)/h;   % first derivative
Z = diff(Y)/h;   % second derivative
plot(X(:,1:length(Y)),Y,'r',X,f,'b', X(:,1:length(Z)),Z,'k')
```

#### Differentiate a Function

```matlab
% Ordinary Differentiation of a function
syms x
g = exp(x)*cos(x);
diff(g)

% 2nd order Differentiation of a function
diff(g,2)

% Partial Differentiation of a function
syms s t
f = sin(s*t);
diff(f,t)
```

### Linear Equations

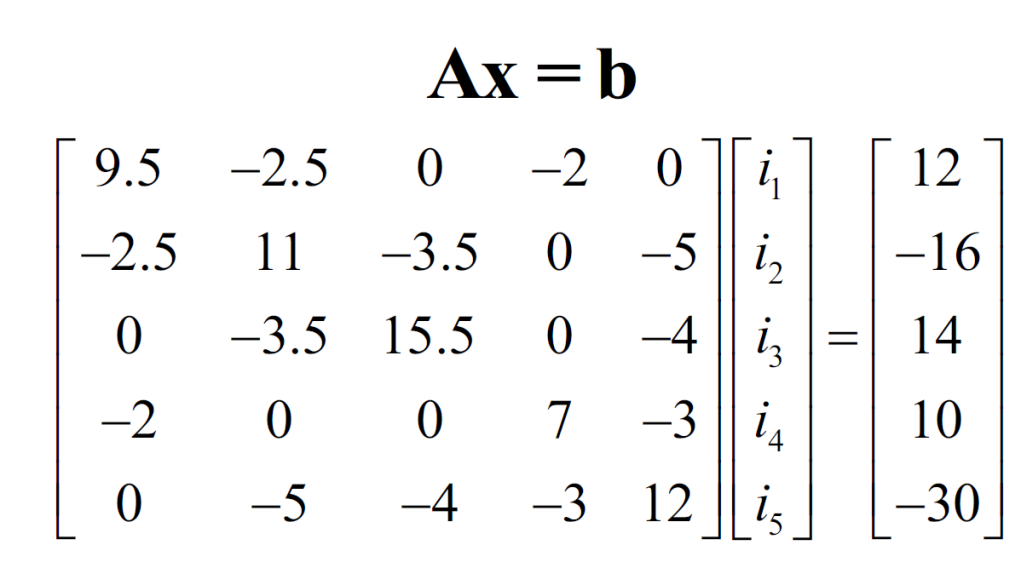

Solve for Ax=b

<figure><img src="/files/xpqXo5Ap5l405IXF3psZ" alt=""><figcaption></figcaption></figure>

![image](https://github.com/ykkimhgu/course-doc/assets/38373000/9e13e283-77a7-4454-9b32-58a80fa822fc)

```matlab
% A, b
A=[9.5, -2.5, 0, -2, 0;     -2.5, 11, -3.5, 0, -5;     0,-3.5, 15.5, 0, -4;     -2,  0,  0, 7, -3;     0, -5,  -4, -3, 12];
b=[12; -16; 14; 10; -30];

% solve for Ax=b
x=A\b
x=inv(A)*b
% condition number
c=cond(A)
% norm
n=norm(A)
% eigenvalue/vector
[eigVec,eigVa]=eig(A)
% QR factorization
[Q,R]=qr(A)

% LU factorization
[L,U]=lu(A)
```

### Polynomial fitting

```matlab
t = 1:1:15;
V=[2.272	2.092	1.887	1.629	1.482	1.308	1.030	0.875	0.693	0.470	0.336	0.095	-0.163	-0.371	-0.511];

% Matlab function for polynomial fit
Zopt=polyfit(t,V,1);
Yopt=polyval(Zopt,t);  % Matlab function

figure
plot(t,V, '*r')
hold on
plot(t,Yopt, '-b')
xlabel('time','fontsize',15)
ylabel('V','fontsize',15)
```

### Exponential Fitting

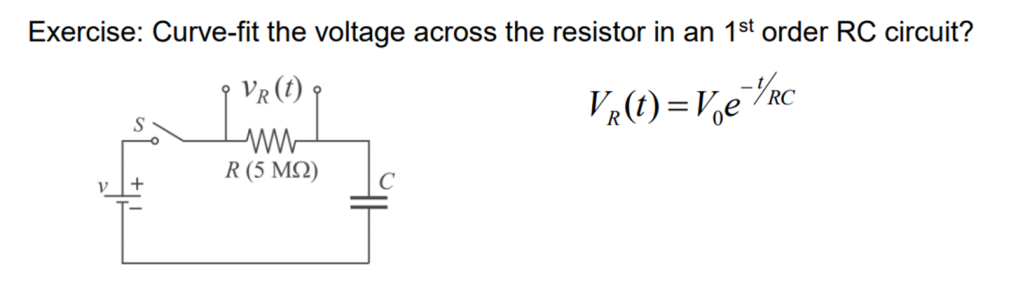

RC circuit with unknown capacitor C and resistor of 5M

a) Find the capacitance C from curve fitting b) Estimate the voltage when time=32sec

<figure><img src="/files/7ARyeWdHMah9rAfANZxu" alt=""><figcaption></figcaption></figure>

![image](https://github.com/ykkimhgu/course-doc/assets/38373000/92ee0d7d-9180-4ddd-a2f9-58319afd0290)

```matlab
Xdata = 1:1:15;
Ydata = [9.7 8.1 6.6 5.1 4.4 3.7 2.8 2.4 2.0 1.6 1.4 1.1 0.85 0.69 0.6];


% Matlab function
Zopt=polyfit(Xdata,log(Ydata),1)
R=5e6;
a0=Zopt(2);
a1=Zopt(1);
V0=exp(a0);
tau=-1/a1;
C=tau/R;

% Exponential model
Yopt=V0*exp(-1/(R*C).*Xdata);

figure
plot(Xdata,Ydata, '*r')
hold on
plot(Xdata,Yopt)
hold on
xlabel('time (s)','fontsize',15)
ylabel('V_R(volt)','fontsize',15)
```

### 1st order ODE-IVP

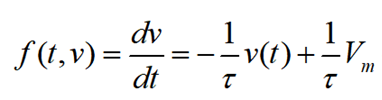

Solve for the response of an RC circuit with a DC input. Let tau= 4.9919; Vm=11.91;

<figure><img src="/files/nHN6us97r6pMCB9g9hnE" alt=""><figcaption></figcaption></figure>

![image](https://github.com/ykkimhgu/course-doc/assets/38373000/cc43d271-fdd5-4d27-ab8f-f0959338d81c)

```matlab
% Initial Condition
a=0; b=15; h=1;
y0 = 11.91;
t=a:h:b;

%% MATLAB's function ODE45
[tmat,vmat] = ode45(@myRC, [a b], y0);  % Fourth/Fifth RK
figure()
plot(tmat,vmat,'.b')
xlabel('time (s)','fontsize',15)
ylabel('V_R(volt)','fontsize',15)

function dvdx = myRC(v)
    tau=4.9919; T=1/tau;  Vm=11.91;
    dvdx =-T*v + 1*T*Vm;
end

```

### 2nd order ODE - IVP

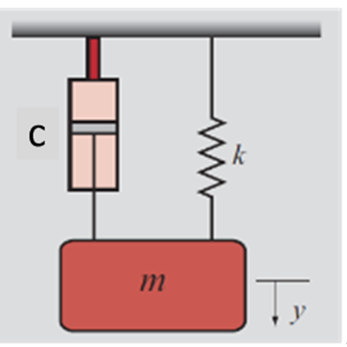

Solve an m-c-k system with a sinusoidal input.

Use m=10kg ; k=800 N/m; c=200 N/(m/s), f=10Hz , h=0.01, Fdc=100N.

<figure><img src="/files/1GD0u7NCDqkYUR6h45Q7" alt=""><figcaption></figcaption></figure>

![image](https://github.com/ykkimhgu/course-doc/assets/38373000/353efdc1-7ba3-4a47-9931-cee8617b067d)

```matlab
% Initial Condition
y0 = 0; v0 = 0;
Yinit = [y0 v0];
a=0; b=1; h=0.01;
tspan = [a:h:b];

% MATLAB's function ODE45
[Time Y] = ode45(@mckFunc,tspan,Yinit);

figure
subplot(2,1,1)
    plot(Time,Y(:,1),'--b')
    xlabel('Time (s)')
    ylabel('Position (m)')
    title('ode45')
subplot(2,1,2)
    plot(Time,Y(:,2),'k')
    xlabel('Time (s)')
    ylabel('Velocity (m/s)')

function [dXdt] = mckFunc(t,x)
    dXdt=zeros(2,1); % column vector
    m=10; k=800; c=200; f=10;
    FinDC=100;
    Fin=FinDC*cos(2*pi*f*t);
    dXdt(1)=x(2);
    dXdt(2)=1/m*(Fin-c*x(2)-k*x(1));
end
```

### Eigenvalue

What are the eigenvalues for a given m-c-k system response? Use m=10kg ; k=800 N/m; c=200 N/(m/s)

<figure><img src="/files/PC1rpSarFvRMAgqEJCyg" alt="" width="174"><figcaption></figcaption></figure>

<figure><img src="/files/hmilQAuk9r0pkcNWtfBV" alt="" width="375"><figcaption></figcaption></figure>

```matlab
k=800; c=200; m=10;
A = [0 1; -k/m, -c/m];
disp('Eigvalue and vector of A (MATLAB):');
[eigVec,eigVa]=eig(A)

```

## More tutorial codes
