# WaveletTransform

## Review of Fourier Analysis

#### Visualizing Fourier Transform

[But what is the Fourier Transform? A visual introduction. - YouTube](https://youtu.be/spUNpyF58BY)

###

#### Fourier Analysis Lectures

Lecture series by Steve Brunton

[Fourier Analysis - YouTube](https://www.youtube.com/playlist?list=PLMrJAkhIeNNT_Xh3Oy0Y4LTj0Oxo8GqsC)

##

#### Background

**Inner Product in Hilbert Space**

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-6a856ce87f273107f3fb8dc7c24ade7b337bb46d%2F2022-01-10-14-55-10-image.png?alt=media)

**Orthogonal basis functions**

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-adfca53308f705ddb64295ed63221062a0abaa6f%2F2022-01-10-14-56-29-image.png?alt=media)

#### Fourier Series

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-23003f318e1e19bb70be5bfb4723e2a819975df3%2F2022-01-10-14-57-07-image.png?alt=media)

**From Fourier Series to Wavelet Functions**

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-a8c081d062f0cfe82622ed03deb22a6f5d88cd0d%2F2022-01-10-14-57-58-image.png?alt=media)

**Fourier Transformation**

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-465bdc4866d2f6aa93293622a74a2f16c86644ae%2F2022-01-10-15-24-13-image.png?alt=media)

***

## Wavelet Decomposition

### Wavelet Introduction

#### Basics of Wavelet

Watch this video for understanding Wavelet transform concept

[Wavelets and Multiresolution Analysis - YouTube](https://youtu.be/y7KLbd7n75g)

#### Mathematics of Wavelet Transform for Beginners

[The Wavelet Transform for Beginners - YouTube](https://youtu.be/kuuUaqAjeoA)

> You need to Review Fourier Transform and Short-Time Fourier Transform.
>
> Click here for Review Fourier Transform

**Limitation of STFT**

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2FJ7kUJ3ydAFzSG4a12Aqo%2Fimage.png?alt=media\&token=f411de9d-cad5-421f-b479-0a587834dd60)

* Window Function is Finite, so Frequency Resolution decreases.
* Fixed length of the window: time and frequency resolution are fixed for entire signals

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2FxnVif0dCjcLVZCS8cy10%2Fimage.png?alt=media\&token=85ca30a3-79b9-4f3a-8f93-05d50f5183d6)

* Narrow Window: Good Time Resolution, Poor Frequency Resolution
* Wide Window: Poor Time Resolution, Good Frequency Resolution

**Wavelet Transform**

Can analyze different Frequency at different Resolution

* High frequency signals: apply narrow window
* Low frequency signals: apply wide window

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2FIf4VhB1PtbU1qxlmOGre%2Fimage.png?alt=media\&token=f454c24e-27d2-491c-82ee-01da6e0296a2)

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2FQnMnx9UbOKJWjb5tZ38W%2Fimage.png?alt=media\&token=fed433e3-a594-4e7f-b2c3-91f62d5a5e41)

Wavelet acts as a scalable and movable window function

* Scaling s
* Translation tau

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2FP4dAnjiNdI4q1Ce61czV%2Fimage.png?alt=media\&token=9555eb7c-383f-45f8-9343-3be45ea840c7)

Different types of wavelets

* Haar, Daubiche, Gaussian, Inverse Mexican Hat etc

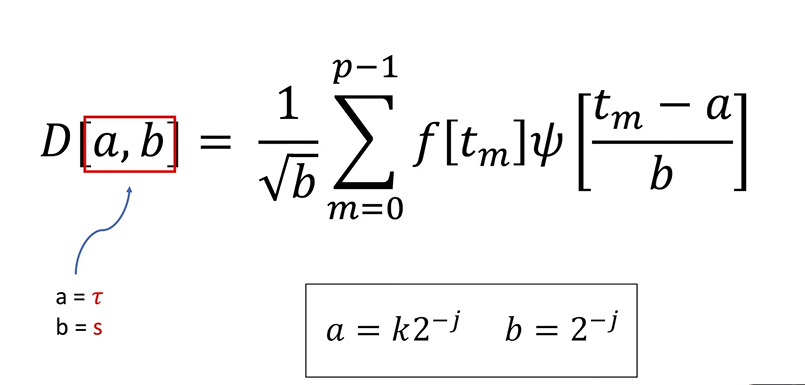

**Discrete Wavelet Transform**

Wavelet transform calculates wavelet coefficients at every possible scale.

* This gives a large data
* So, use finite numbers of s and \tau
*   Choose s and \tau based on powers of two for efficient calculation

    <img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2F8DoShCXsbGT7rlgJWaav%2Fimage.png?alt=media&#x26;token=f3b481be-103b-449e-99d7-e2d618552647" alt="" data-size="original">

### Multilevel Decomposition

![](https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Ft8xlKep32HBuNKhLaHRk%2Fimage.png?alt=media\&token=439a838e-aa1e-407e-9c9b-d73c83739f93)

#### 1D Wavelet Decomposition

* **Algorithms**

![](https://kr.mathworks.com/help/wavelet/ref/ref_0226y.png) ![](https://kr.mathworks.com/help/wavelet/ref/ref_02114y.png)

**MATLAB example**

`wavedec()`

* \*\*\[c,l] = wavedec(x,n,wname) \*\*returns the wavelet decomposition of the 1-D signal x at level n using the wavelet wname.
*   [MATLAB documentation](https://kr.mathworks.com/help/wavelet/ref/wavedec.html)

    **Dowload Example Code**

[Download MATLAB example code](https://github.com/ykkimhgu/gitbook_docs/blob/master/machine-learning/tutorials/wavedec1d_example.mlx)

\[c,l] = wavedec(x,n,wname) returns the wavelet decomposition of the 1-D signal x at level n using the wavelet wname. The output decomposition structure consists of the wavelet decomposition vector c and the bookkeeping vector l, which contains the number of coefficients by level. ![](https://kr.mathworks.com/help/wavelet/ref/ref_0233x.gif)

```
load sumsin
plot(sumsin)
title('Signal')
```

Perform a 3-level wavelet decomposition of the signal using the order 2 Daubechies wavelet. Extract the coarse scale approximation coefficients and the detail coefficients from the decomposition.

* A = appcoef(C,L,wname) returns the approximation coefficients at the coarsest scale using the wavelet decomposition structure \[C,L] of a 1-D signal
* D = detcoef(C,L,N) extracts the detail coefficients at the level or levels specified by N.

```
[c,l] = wavedec(sumsin,3,'db2');
approx = appcoef(c,l,'db2');
[cd1,cd2,cd3] = detcoef(c,l,[1 2 3]);
Plot the coefficients.
figure
subplot(4,1,1)
plot(approx)
title('Approximation Coefficients')
subplot(4,1,2)
plot(cd3)
title('Level 3 Detail Coefficients')
subplot(4,1,3)
plot(cd2)
title('Level 2 Detail Coefficients')
subplot(4,1,4)
plot(cd1)
title('Level 1 Detail Coefficients')
```

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-f1059639f36030819e6afa4776473e01c69a2e98%2F2022-01-10-15-47-06-image.png?alt=media)

![](https://3698175758-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAwtzMy_pbrChIExFtN%2Fuploads%2Fgit-blob-abefa211e7da26a64e904758e230a92af6898153%2F2022-01-10-15-47-16-image.png?alt=media)

#### 2D Wavelet Decomposition

![../\_images/plot\_mallat\_2d.png](https://pywavelets.readthedocs.io/en/latest/_images/plot_mallat_2d.png)

It can be seen that many of the coefficients are near zero (gray). This ability of the wavelet transform to sparsely represent natural images is a key property that makes it desirable in applications such as image compression and restoration.

* For subsequent levels of decomposition, only the approximation coefficients (the **lowpass subband**) are further decomposed.
* The top row indicates the coefficient names as used by [`wavedec2()`](https://pywavelets.readthedocs.io/en/latest/ref/2d-dwt-and-idwt.html#pywt.wavedec2) after each level of decomposition. The bottom row shows wavelet coefficients for the camerman image (with each subband independently normalized for easier visualization).

### Application

1. [Wavelet Decomposition for Bearing fault classification](https://app.gitbook.com/s/-MAwtzMy_pbrChIExFtN/c/xHqhvVAiy3lgRCmi71jD/digital-twin/notes-on-data-processing/wavelet-decomposition)
2. Image Compression using Wavelet

#### Exercise

1. [Detecting Discontinuities and Breakdown Points](https://kr.mathworks.com/help/wavelet/ug/detecting-discontinuities-and-breakdown-points.html)

***

##

## Analytical Signal and Hilbert Transform

### Analytical Signal and Hilbert Transformation

[https://www.gaussianwaves.com/2017/04/analytic-signal-hilbert-transform-and-fft/](fourieranalysis-wavelettransform)

### Analytical Signal

#### Continuous Analytical Signal

The analytic signal is complex-valued but its spectrum will be one-sided (only positive frequencies) that preserved the spectral content of the original real-valued signal.

![](https://www.gaussianwaves.com/gaussianwaves/wp-content/uploads/2017/04/analytic_signal_spectrum_2.png)

_Figure 1: (a) Spectrum of continuous signal x(t) and (b) spectrum of analytic signal z(t)_

How to get one-sided Magnitude spectrum?

* Frequency domain approach
  *   The one-sided spectrum of $z(t)$ is formed from the two-sided spectrum of the real-valued signal $x(t)$ by applying

      $$
      Z(f) = \begin{cases} \;X(0) & for \; f=0 \\ 2X(f) & for \; f>0 \\ \;\;\;0 & for \; f<0 \end{cases}
      $$
* Time domain approach
  * Using Hilbert transform approach

$$
z(t)=zr(t)+jzi(t)=x(t)+jHTx(t)
$$

One of the important property of an analytic signal is that its real and imaginary components are orthogonal

$$
\displaystyle{\int_{-\infty}^{\infty} z_i(t) z_r(t) = 0}
$$

### Discrete Analytical Signal

Discrete-Time Fourier Transform (DTFT).

$$
X(f) = \displaystyle{ T \sum_{n=0}^{N-1} x[n] e^{-j 2 \pi f n T} }
$$

![](https://www.gaussianwaves.com/gaussianwaves/wp-content/uploads/2017/04/discrete_time_analytic_signal_PNG.png)

The analytic signal is complex valued

$$
z[n] = z_r[n] + j z_i[n]
$$

and should satisfy the following two _**desired properties**_

*   The real part of the analytic signal should be same as the original real-valued signal.

    $$
    z_r[n] = x[n]
    $$
* The real and imaginary part of the analytic signal should satisfy the following property of orthogonality

$$
\displaystyle{ \sum_{n=0}^{N-1} z_r[n] z_i[n] = 0 }
$$

Given a record of samples x\[n] of even length N, the procedure to construct the analytic signal z\[n] is as follows.

This method satisfies both the desired properties listed above.

* Compute the N-point DTFT of x\[n] using FFT
* N-point periodic one-sided analytic signal is computed by the following transform

Compute the N-point DTFT of x\[n] using FFT ● N-point periodic one-sided analytic signal is computed by the following transform

equation for constructing analytic signal in frequency domain

![](https://www.gaussianwaves.com/gaussianwaves/wp-content/uploads/2019/06/analytic-signal.png)

* Finally, the analytic signal (z\[n]) is obtained by taking the inverse DTFT of

$$
z[n] = \displaystyle{ \frac{1}{NT} \sum_{m=0}^{N-1} z[m] \; exp \left( j 2 \pi mn/N\right)}
$$

```matlab
Function z = analytic_signal(x)



%x is a real-valued record of length N, where N is even %returns the analytic signal



z[n]x = x(:); %serialize



N = length(x);



X = fft(x,N);


z = ifft([X(1); 2*X(2:N/2); X(N/2+1); zeros(N/2-1,1)],N);
```

##

***

## Envelope (Instantaneous Amplitude) Extraction using Hilbert Transformation

The amplitude modulated signal is

$$
x(t) = m(t) cos\left(\omega_c t\right)
$$

* Information bearing signal m(t). Also called _**instantaneous amplitude**_.
* Carrier signal cos(wc\*t)

Similarly, phase or frequency modulations:

$$
x(t) = a cos \left(\phi(t) \right)
$$

* The concept of instantaneous phase or instantaneous frequency is required for describing the modulated signal.

_**General form**_

$$
x(t) = a(t) cos \left[ \phi (t) \right]
$$

#### Problem statement

Given the modulated signal, extract the instantaneous amplitude (envelope), instantaneous phase and the instantaneous frequency.

* The modulated signal is a real-valued signal.
* But, amplitude/phase and frequency can be easily computed if the signal is expressed in complex form.

How can we convert a real signal to the complex plane without altering the required properties ?

*   [Apply Hilbert transform and form the analytic signal](https://www.gaussianwaves.com/2017/04/analytic-signal-hilbert-transform-and-fft/) on the complex plane

    <img src="https://www.gaussianwaves.com/gaussianwaves/wp-content/uploads/2017/04/Analytic_signal.png" alt="" data-size="original">

$$
z(t) = z_r(t) + j z_i(t) = x(t) + j HT{x(t)}
$$

The instantaneous amplitude (_**envelope extraction**_) is computed in the complex plane as

$$
a(t) = |z(t)| = \sqrt{z_r^2(t) + z_i^2(t)}
$$

\[

![](https://www.gaussianwaves.com/gaussianwaves/wp-content/uploads/2017/04/extract_envelope_TFS-analytic-signal-hilbert-transform.png)

Figure 2: Amplitude modulation using a chirp signal and extraction of envelope and TFS\*

***

#### MATLAB Tutorial on Envelope Extraction

[MATLAB example code](https://github.com/ykkimhgu/gitbook_docs/blob/master/machine-learning/tutorials/EnvelopExtraction_example.mlx)
