# Tutorial: PlatformIO in VSCode

## Tutorial: PlatformIO in VSCode

## Step 1: Install Python

You can install Python in Window by following the instruction here:

[Install Python 3.x in Win OS](https://www.python.org/downloads/windows/)

How to check if you already have Python

* Open Window Command Prompt > Type `python --version`
*   If you see the version, then you already have python installed.

    ![image](https://github.com/user-attachments/assets/42cdb9a9-7097-4f1a-816d-d96ba8d86869)

## Step 2: Install VS Code

Refer to [Installation-guide: VS CDOE](https://ykkim.gitbook.io/dlip/installation-guide/ide/vscode)

## Step 3: Install PlatformIO Core

> You may not need this step if you are going to use VS Code. But, install anyway.

1. Download python file of PlatformIO Core: 다른이름으로 링크저장: [get-platformio.py](https://raw.githubusercontent.com/platformio/platformio-core-installer/master/get-platformio.py)

* Download and save it as in py file

**WIN OS**: In command prompt

```cmd
# change directory to the folder where is located downloaded "get-platformio.py"
cd C:/path-to-dir/where/get-platformio.py/is-located

# run it
python.exe get-platformio.py
```

**MAC OS**

```cmd
# change directory to the folder where is located downloaded "get-platformio.py"
cd /path-to-dir/where/get-platformio.py/is-located

# run it
python get-platformio.py
```

## Step 4: Install PlatformIO IDE extension in VS Code

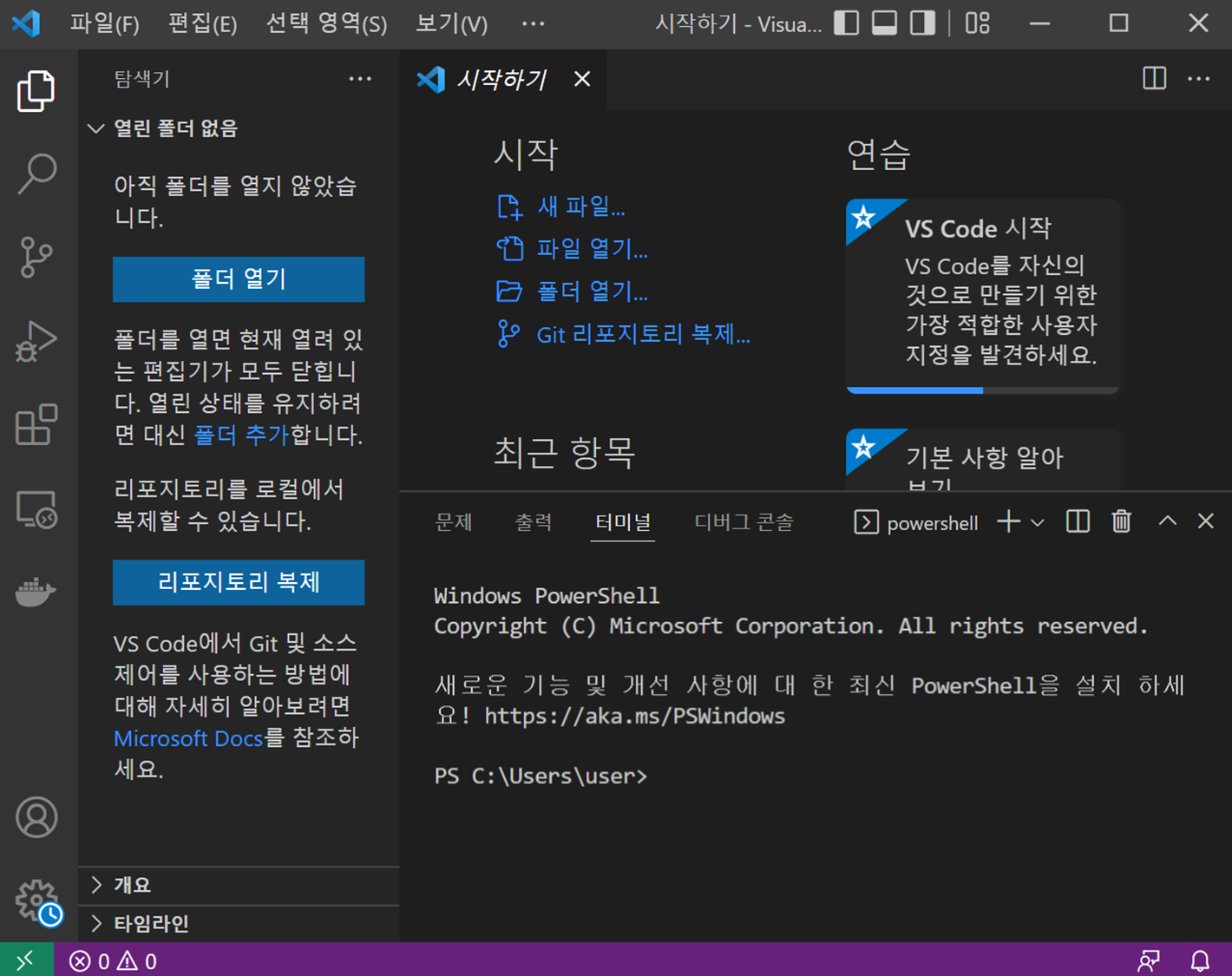

1. Open VS Code

<figure><img src="https://3453146497-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgmrEstOHxu62gXxq1t%2Fuploads%2FcS5b2CpHHs7dXHkPDb3a%2Fimage.png?alt=media&#x26;token=b7dbf416-9545-4a57-a2cf-aae69bf964bb" alt=""><figcaption></figcaption></figure>

2. Open VSCode Package Manager
3. Search for the official PlatformIO IDE in extension.
4. Install PlatformIO IDE

<figure><img src="https://3453146497-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgmrEstOHxu62gXxq1t%2Fuploads%2F9Rw0LJkWsutyb9K1lNtU%2Fimage.png?alt=media&#x26;token=5ec9b6ac-e4e9-49ce-9012-fc09a909d207" alt=""><figcaption></figcaption></figure>

## Step 5: Setting Up the Project in PlatformIO

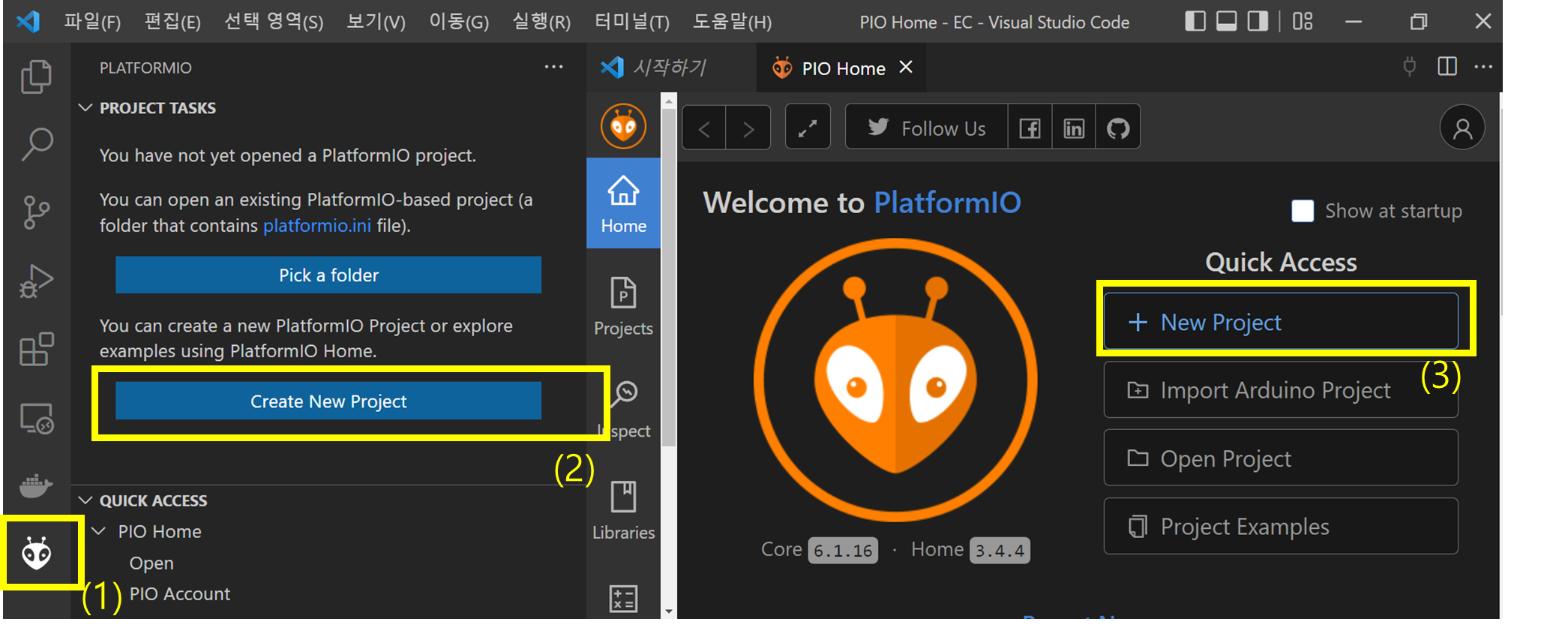

1. Go to PlatformIO Home by clicking on the `PlatformIO Icon`
2. Create New Project

<figure><img src="https://3453146497-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgmrEstOHxu62gXxq1t%2Fuploads%2Fhu4hUCi90XTx5NnpA2xl%2Fimage.png?alt=media&#x26;token=4ec2880f-23fd-40a0-8b59-686e7dbcaaa3" alt=""><figcaption></figcaption></figure>

3. Name the project as `EC` or `EC2024`

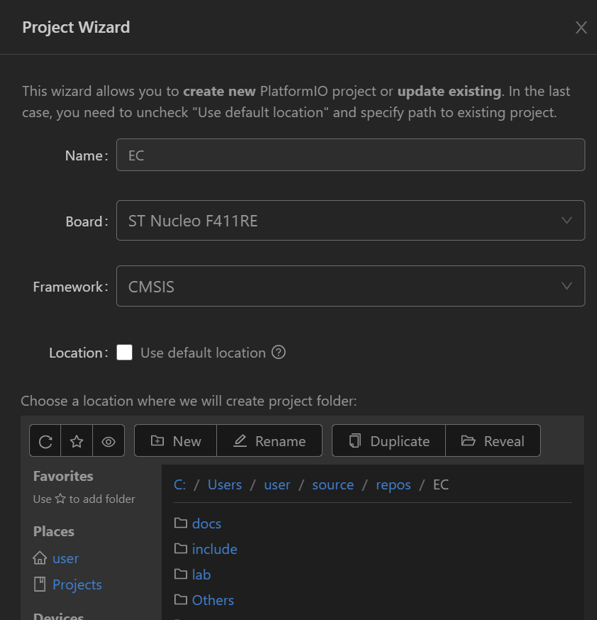

4. Select Setting as follows

* Board: ST Nucleo F411RE
* Framework: CMSIS
* Location: Your EC workspace

<figure><img src="https://3453146497-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgmrEstOHxu62gXxq1t%2Fuploads%2F3TovOS59xGCXY8Vwu3dd%2Fimage.png?alt=media&#x26;token=98689d76-8e0d-43f6-8b8d-3e3f176d9f68" alt=""><figcaption></figcaption></figure>

## Step 6: Manage Environment, Build and Upload

Open VSCode and select the EC workspace folder

* eg.: `\repos\EC\`

Go to PlatformIO Home by clicking on the `PlatformIO Icon`

### Creating a new file

You can start your Tutorial or LAB by following the instructions given in the report.

For example, for **LAB\_GPIO\_DIO\_LED**, we created the project folder and the main program file, under the workspace of **`...\repos\EC\`** as

* Folder: `\LAB\LAB_GPIO_DIO_LED\`
* Main src: `LAB_GPIO_DIO_LED.c`

For this tutorial, create the project folder and program file as

* Folder: `\tutorial\TU_CreateProject_VSC\`
* Main src 1: `TU_CreateProject_Example1_main.c`
* Main src 2: `TU_CreateProject_Example2_main.c`

**`TU_CreateProject_Example1_main.c`**

```c

#include "stm32f4xx.h"

#define LED_PIN    5
#define BUTTON_PIN 13

// LED ON or OFF

int main(void) {
/* Part 1. RCC Register Setting */
	// RCC Control Register (HSI)
	RCC->CR |= ((uint32_t)RCC_CR_HSION);
	// wait until HSI is ready
	while ( (RCC->CR & (uint32_t) RCC_CR_HSIRDY) == 0 ) {;}
	// Select HSI as system clock source
	// RCC Configuration Register
	RCC->CFGR &= (uint32_t)((uint32_t) ~(RCC_CFGR_SW));
	RCC->CFGR |= (uint32_t)RCC_CFGR_SW_HSI;
	// Wait till HSI is used as system clock source
	while ((RCC->CFGR & (uint32_t)RCC_CFGR_SWS) != 0 ) {;}
	// HSI is used as system clock
	// RCC Peripheral Clock Enable Register
	RCC->AHB1ENR |= RCC_AHB1ENR_GPIOAEN;

/* Part 2. GPIO Register Setting */
	// GPIO Mode Register
	GPIOA->MODER &= ~(3UL<<(2*LED_PIN));
	GPIOA->MODER |=   1UL<<(2*LED_PIN);


	// Dead loop & program hangs here
	while(1){
		// Turn ON LED2
		GPIOA->ODR |= (1UL << LED_PIN);

		// Turn OFF LED2
		//GPIOA->ODR &= ~(1UL << LED_PIN);
	}
}
```

**`TU_CreateProject_Example2_main.c`**

```c

#include "ecSTM32F4v2.h"
#define LED_PIN PA_5
#define BUTTON_PIN PC_13

void setup(void);

int main(void) {
	setup();

	while (1) {
		delay_ms(1000);
		GPIO_write(LED_PIN, LOW);
		delay_ms(1000);
		GPIO_write(LED_PIN, HIGH);
	}
}


// Initialiization
void setup(void) {
	RCC_PLL_init();
	SysTick_init();

	// initialize the pushbutton pin as an input:
	GPIO_init(BUTTON_PIN, INPUT);
	// initialize the LED pin as an output:
	GPIO_init(LED_PIN, OUTPUT);
}

```

### Adding Library

You can add your EC library header files under the directory of `\include`

> You can add it under the directory of `\lib.` But you need to modify the include\_dir folder in `platformio.ini`

### Creating Environment

For every new TU or LAB, you can create a new environment that shares the MCU configuration. You do not need to re-configure the MCU setup everytime you create a new project. Simply, add a new environment that links your new program main file.

For this tutorial, we will learn how to add new environments for each `TU_CreateProject_Example1_main.c`, and `TU_CreateProject_Example2_main.c`.

Modify `platformio.ini` in the workspace folder as

```cmd
; PlatformIO Project Configuration File
;
;   Build options: build flags, source filter
;   Upload options: custom upload port, speed and extra flags
;   Library options: dependencies, extra library storages
;   Advanced options: extra scripting
;
; Please visit documentation for the other options and examples
; https://docs.platformio.org/page/projectconf.html


[platformio]
src_dir = .
include_dir = include

# Default environment setting
[env]
platform = ststm32
board = nucleo_f411re
framework = cmsis
debug_tool = stlink
build_flags = -Wl,-u,_print_float,-u,_scanf_float, -std=c11, -O3

##################################################################3
# User-Defined Environment

# For example: LAB GPIO
#[env:LAB_GPIO]
#build_src_filter = +<LAB/LAB_GPIO_DIO_LED/LAB_GPIO_DIO_LED.c> +<include/*.c>

# You can add new environments
[env:TU_CreateProject_Example1]
build_src_filter = +<tutorial/TU_CreateProject_VSC/TU_CreateProject_Example1_main.c> +<include/*.c>

[env:TU_CreateProject_Example2]
build_src_filter = +<tutorial/TU_CreateProject_VSC/TU_CreateProject_Example2_main.c> +<include/*.c>


```

![image](https://github.com/user-attachments/assets/ae464e5e-5559-4ecb-b6a7-ffdddfe4f2f7)

### Selecting Environment, Build and Run

1. Click on `Switch the environment` on VSCode
2. Select the Environment you want to build.
   * For this tutorial, first select \[env:TU\_CreateProject\_Example1]
3. BUILD. If you have MCU connected, you can also UPLOAD
4. Now, Select the other Environment that uses your EC library \[env:TU\_CreateProject\_Example2]

![image](https://github.com/user-attachments/assets/50cdf9f0-0fd4-4b1b-9217-78495e87e981)

## Appendix

### PlatformIO Toolbar

[Read more about it here](https://docs.platformio.org/en/latest/integration/ide/vscode.html#platformio-toolbar)

![image](https://github.com/user-attachments/assets/cfb89c99-d11d-4af5-8353-79230c4d033f)

PlatformIO IDE Toolbar is located in VSCode Status Bar (left corner) and contains quick access buttons for the popular commands. Each button contains hint (delay mouse on it).

1. [PlatformIO Home](https://docs.platformio.org/en/latest/home/index.html#piohome)
2. PlatformIO: Build
3. PlatformIO: Upload
4. PlatformIO: Clean
5. [Serial Port Monitor](https://docs.platformio.org/en/latest/core/userguide/device/cmd_monitor.html#cmd-device-monitor)
6. [PlatformIO Core (CLI)](https://docs.platformio.org/en/latest/core/index.html#piocore)
7. Project environment switcher (if more than one environment is available). See \[Section [env\]](https://docs.platformio.org/en/latest/projectconf/sections/env/index.html#projectconf-section-env) of [“platformio.ini” (Project Configuration File)](https://docs.platformio.org/en/latest/projectconf/index.html#projectconf) .
